TIW 06-105 | TRACO POWER

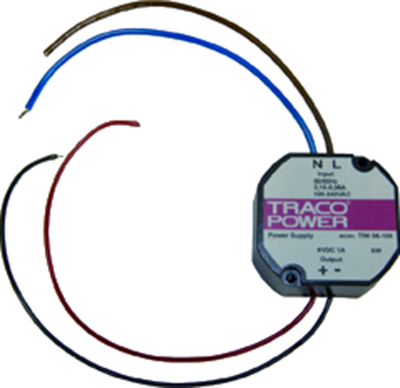

Switching power supply, 5 VDC, 1 A, 5 W, TIW 06-105
Unit Price (€ / pc.)
39.3771 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
39.38 € *
Price list
Quantity
Price per unit*
1 pcs.
39.3771 €
10 pcs.
35.4382 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies for domestic installations, type Traco TIW.
For installation in flush-mount boxes with encapsulated plastic housing, short-circuit/overload/thermal overload protection; Input voltage: 93 to 264 VAC, 47 to 63 Hz. Current limiting: max. 2.5 A/3.5 A (models up to 6.0 V/as of 12 V). Degree of protection: IP 67. Operating temperatures: –25 to +50 °C.
Technical attributes (type, output voltage, output current, efficiency): TIW 06-105, 5.0 VDC, 1.0 A, 75 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 1 A | |
| Breite | 48 mm | |
| Eingangsspannungsbereich | 90-264 VAC/130-375 VDC | |
| Länge | 50.2 mm | |
| Leistung | 5 W | |
| Tiefe | 23.6 mm | |
| Wirkungsgrad | 76 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
