TMP 30317C | TRACO POWER
Power module, 5/3.3/12 VDC, 4.5 A, 29 W, TMP 30317C
Unit Price (€ / pc.)
93.5697 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
93.57 € *
Price list
Quantity
Price per unit*
1 pcs.
93.5697 €
10 pcs.
84.2163 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power modules, type Traco TMP.
Flat, molded switching mode power supply module with short-circuit and overload protection; Input voltages: 85 to 264 VAC, 120 to 370 VDC. Line frequency: 47 to 400 Hz. Output voltage adjustment tolerance: ±2.0 %. Control error on input fluctuation: max. 1.0 %. Insulation voltage: 3000 VAC. Insulation resistance: 100 Mohm, safety class II. Operating temperatures: –25 to +60 °C.
For chassis mounting, type TMP 30.
Technical attributes (type, max. output power, number of outputs, output voltage, output current): TMP 30317C, 30 W, 3 x OUT, 5.0/3.3/12 VDC, 4500/1000/250 mA

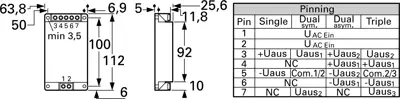

Technical specifications
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 5/3,3/12 VDC | |
| Ausgangsstrom | 4.5 A | |
| Breite | 63.8 mm | |
| Eingangsspannungsbereich | 85-264 VAC/120-370 VDC | |
| Länge | 112 mm | |
| Leistung | 29 W | |
| Tiefe | 25.6 mm | |
| Wirkungsgrad | 71 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
