TPI 50-153A-J | TRACO POWER

Open frame switching power supply, 53 VDC, 0.95 A, 50 W, TPI 50-153A-J

Order No.: 35C1725
EAN: 7613441068527
MPN:
TPI 50-153A-J
Series: TPI 50A-J
TRACO POWER
TPI 50-153A-J TRACO POWER Built-In Power Supplies

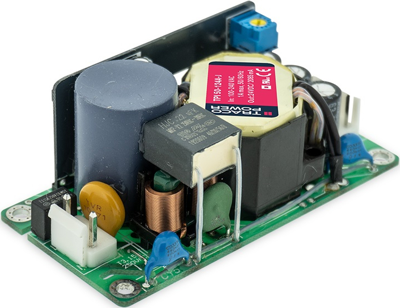

Image may differ
Unit Price (€ / pc.)
39.2462 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
39.25 € *
Price list
Quantity
Price per unit*
1 pcs.
39.2462 €
5 pcs.
35.3192 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC/DC Industrial power supply, TPI 50-153A-J, TRACO POWER

The TPI 50A-J is a 50 Watt AC/DC open frame power supply with a 3000 VAC reinforced isolation system. Our TPI line specifically focuses on providing cost efficient industrial power supply in compact designs. This offers a peak power function which enables the unit to deliver up to 140% of the rated power for up to 5 seconds. Excellent efficiency of up to 93% allows a compact design and an operating temperature range (natural convection) of -40°C to +60°C without derating, while going up to +85°C with either load derating or forced cooling. It is designed to meet the ErP directive (< 0.3 W no load power consumption) and comes with an EMC characteristics dedicated for applications in industrial/automation and test & measurement fields. High reliability is providesd by use of industrial high-quality grade components and an excellent thermal management. It makes the TPI 50A-J an ideal solution for any demanding industrial devices or space critical applications.

Features

  • Compact and cost efficient design
  • Peak power function up to 140%
  • High efficiency up to 93%
  • Protection class II prepared
Technical specifications
Number of outputs 1
Output voltage DC 53 VDC
Output current 0.95 A
Width 38.1 mm
Input voltage AC 85-264 VAC/120-370 VDC
Length 76.2 mm
Power 50 W
Depth 32.1 mm
efficiency 92 %
Logistics
Country of origin TW
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
