TXH 120-124 | TRACO POWER

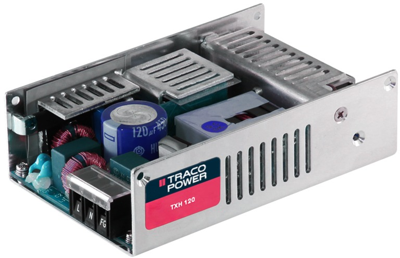

Switching power supply, 24 VDC, 5 A, 120 W, TXH 120-124
Unit Price (€ / pc.)
108.6946 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
108.69 € *
Price list
Quantity
Price per unit*
1 pcs.
108.6946 €
10 pcs.
97.8180 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies, type Traco TXH.
Compact power supply in U-angle design, 360 W models in metal enclosure, short-circuit and overvoltage protection; Input voltage range: 90 to 264 VAC/120 to 370 VDC, 47 to 63 Hz. Control error: input fluctuation max. 1.0 %, load fluctuation max. 1.0 %. Efficiency: 91 %. Operating temperatures: - 25 to +70 °C. Certifications: cULus, CB.
Output power 120 W, type TXH 120.
Dimensions: 137 x 38 x 82 mm.
Technical attributes (type, rated output voltage, output current (max.)): TXH 120-124, 24 VDC, 5.0 A
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 5 A | |
| Breite | 82 mm | |
| Eingangsspannungsbereich | 90-264 VAC/120-370 VDC | |
| Länge | 136 mm | |
| Leistung | 120 W | |
| Tiefe | 38 mm | |
| Wirkungsgrad | 93 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
