TXH 240-124 | TRACO POWER

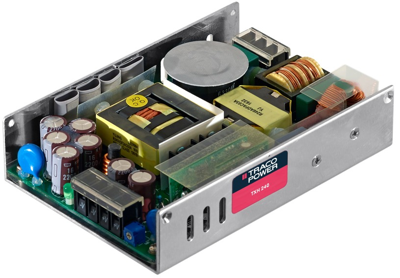

Switching power supply, 24 VDC, 10 A, 240 W, TXH 240-124
Power supplies, type Traco TXH.
Compact power supply in U-angle design, 360 W models in metal enclosure, short-circuit and overvoltage protection; Input voltage range: 90 to 264 VAC/120 to 370 VDC, 47 to 63 Hz. Control error: input fluctuation max. 1.0 %, load fluctuation max. 1.0 %. Efficiency: 91 %. Operating temperatures: - 10 to +70 °C. Certifications: cULus, CB.
Output power 240 W, type TXH 240.
Dimensions: 150 x 35 x 106 mm.
Technical attributes (type, rated output voltage, output current (max.)): TXH 240-124, 24 VDC, 10 A
Anzahl der Ausgänge | 1 | |
Ausgangsspannungsbereich | 24 VDC | |
Ausgangsstrom | 10 A | |
Breite | 106 mm | |
Eingangsspannungsbereich | 90-264 VAC/120-370 VDC | |
Länge | 150 mm | |
Leistung | 240 W | |
Tiefe | 35 mm | |
Wirkungsgrad | 92 % |
Ursprungsland | TW |
Zolltarifnummer | 85044095 |
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | No |
Substanz Beschreibung | Blei |
