TXL 035-1212D | TRACO POWER
Switching power supply, ±12 VDC, 3 A, 35 W, TXL 035-1212D

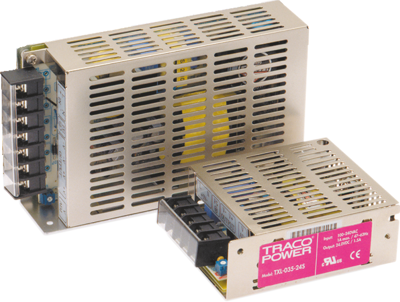

Power supplies, type Traco TXL.
In compact metal enclosure with screw terminals, short-circuit and overvoltage protection; Input voltage range: 85 to 264 VAC/120 to 375 VDC, 50 to 60 Hz. Output voltage: ±10 % (with potentiometer). Residual ripple: 1.0 % (20 MHz BW). Interference suppression: EN 55022 class B and FCC (Level B), EN 61000-3. Immunity to interference: EN 61000-4. Current limiting: 105 to 150 % (foldback, automatic restart). Overvoltage protection: 115 to 140 %. Efficiency: 70 to 84 % typically. Operating temperatures: –10 to +70 °C. MTBF: 250000. h at +25 °C.
With several outputs, type TXL.
Control error: on input fluctuation max. 1.0 %, on load fluctuation max. 4.0/6.0 % (master output/output 2 and 3).
Technical attributes (type, output power, number of outputs, output voltage, output current): TXL 035-1212D, 35 W, 2 x OUT, +12 VDC/3.0 A, –12 VDC/1.5 A
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 3 A | |

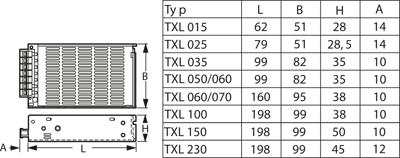

| Breite | 35 mm | |
| Eingangsspannungsbereich | 88-264 VAC/127-375 VDC | |
| Länge | 99.1 mm | |
| Leistung | 35 W | |
| Tiefe | 82 mm | |
| Wirkungsgrad | 83 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
