TXL 060-24S | TRACO POWER

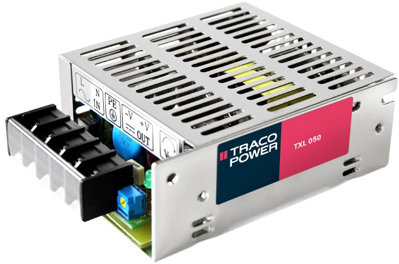

Power supply, 24 VDC, 2.5 A, 60 W, TXL 060-24S
Power supplies, type Traco TXL.
In compact metal enclosure with screw terminals, short-circuit and overvoltage protection; Input voltage range: 85 to 264 VAC/120 to 375 VDC, 50 to 60 Hz. Output voltage: ±10 % (with potentiometer). Residual ripple: 1.0 % (20 MHz BW). Interference suppression: EN 55022 class B and FCC (Level B), EN 61000-3. Immunity to interference: EN 61000-4. Current limiting: 105 to 150 % (foldback, automatic restart). Overvoltage protection: 115 to 140 %. Efficiency: 70 to 84 % typically. Operating temperatures: –10 to +70 °C. MTBF: 250000. h at +25 °C.
1 x OUT, type TXL.
Control error: on input fluctuation max. 1.0 %, on load fluctuation max. 2.0 %.
Technical attributes (type, output power, number of outputs, output voltage, output current): TXL 060-24S, 50/60 W, 24 VDC, 2.5 A
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 2.5 A | |
| Breite | 35 mm | |
| Eingangsspannungsbereich | 85-264 VAC/125-375 VDC | |
| Länge | 99 mm | |
| Leistung | 60 W | |
| Tiefe | 82 mm | |
| Wirkungsgrad | 84 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
