TXLN 035-103 | TRACO POWER
Power supply, 3.3 VDC, 9 A, 30 W, TXLN 035-103
Unit Price (€ / pc.)
45.6365 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
45.64 € *
Price list
Quantity
Price per unit*
1 pcs.
45.6365 €
10 pcs.
41.0788 €
*incl. VAT plus shipping costs
**Subject to prior sale

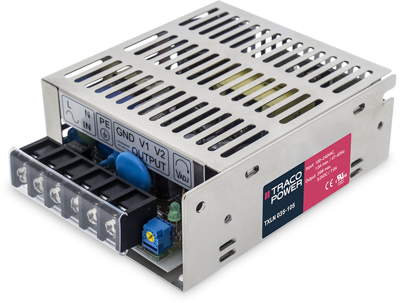

Power supply, TXLN 035-103, Traco
AC/DC-power supply 3.3 VDC, 9.0 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 86 %
- Short circuit, overvoltage and overload protection
- Universal input 88-264 VAC
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Ausgangsstrom | 9 A | |
| Breite | 35 mm | |
| Eingangsspannungsbereich | 88-264 VAC/125-375 VDC | |
| Länge | 99 mm | |
| Leistung | 30 W | |
| Tiefe | 82 mm | |
| Wirkungsgrad | 74 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
