TXLN 060-103 | TRACO POWER
Power supply, 3.3 VDC, 12 A, 40 W, TXLN 060-103
Unit Price (€ / pc.)
51.5984 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
51.60 € *
Price list
Quantity
Price per unit*
1 pcs.
51.5984 €
10 pcs.
46.4338 €
*incl. VAT plus shipping costs
**Subject to prior sale

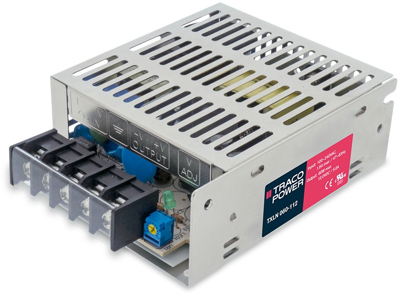

Power supply, TXLN 060-103, Traco
AC/DC-power supply 3.3 VDC, 12.0 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 86 %
- Short circuit, overvoltage and overload protection
- Universal input 88-264 VAC
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Ausgangsstrom | 12 A | |
| Breite | 82 mm | |
| Eingangsspannungsbereich | 88-264 VAC/125-375 VDC | |
| Länge | 99 mm | |
| Leistung | 40 W | |
| Tiefe | 35 mm | |
| Wirkungsgrad | 72 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
