TXLN 080-3125 | TRACO POWER
Power supply, 5/12/24 VDC, 8 A, 82 W, TXLN 080-3125
Unit Price (€ / pc.)
79.5872 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
79.59 € *
Price list
Quantity
Price per unit*
1 pcs.
79.5872 €
10 pcs.
71.6261 €
*incl. VAT plus shipping costs
**Subject to prior sale

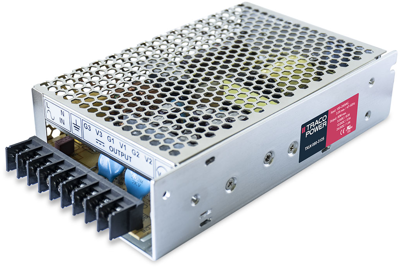

Power supply, TXLN 080-3125, Traco
AC/DC-power supply 5-12 VDC, 8.0-3.5 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 82 %
- Short circuit, overvoltage and overload protection
- Universal input 88-264 VAC
Technical specifications
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 5/12/24 VDC | |
| Ausgangsstrom | 8 A | |
| Breite | 95 mm | |
| Eingangsspannungsbereich | 88-264 VAC/125-375 VDC | |
| Länge | 159 mm | |
| Leistung | 82 W | |
| Tiefe | 38 mm | |
| Wirkungsgrad | 82 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
