TXLN 960-115 | TRACO POWER
Power supply, 15 VDC, 64 A, 960 W, TXLN 960-115
Unit Price (€ / pc.)
405.0998 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
405.10 € *
Price list
Quantity
Price per unit*
1 pcs.
405.0998 €
10 pcs.
364.5684 €
*incl. VAT plus shipping costs
**Subject to prior sale

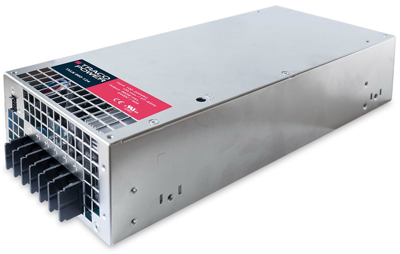

Power supply, TXLN 960-115, Traco
AC/DC-power supply 15 VDC, 64.0 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 89 %
- Short circuit, overvoltage and overload protection
- Universal input 90-264 VAC
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 64 A | |
| Width | 125 mm | |
| Input voltage AC | 90-264 VAC/127-375 VDC | |
| Length | 275 mm | |
| Power | 960 W | |
| Depth | 63 mm | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
