TXN 100-105 | TRACO POWER
Switching power supply, 5 VDC, 16 A, 80 W, TXN 100-105
Unit Price (€ / pc.)
22.3958 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
22.40 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3958 €
5 pcs.
20.1586 €
*incl. VAT plus shipping costs
**Subject to prior sale

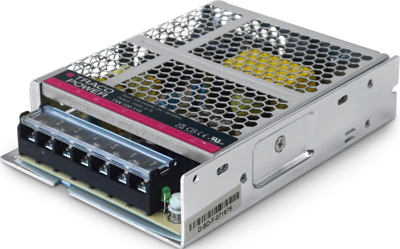

AC/DC Industrial power supply, TXN 100-105, TRACO POWER
The new TXN line comprises a of cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, It is easy to install in any equipment. The TXN power supply is completely convection cooled. Internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. This power supply have universal input and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- High efficiency up to 86%
- Short circuit, overvoltage and overload protection
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 5 VDC | |
| Output current | 16 A | |
| Width | 97 mm | |
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Length | 129 mm | |
| Power | 80 W | |
| Depth | 30 mm | |
| efficiency | 83 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
