TXO 120-148-J | TRACO POWER
Open frame switching power supply, 48 VDC, 2.5 A, 120 W, TXO 120-148-J
Unit Price (€ / pc.)
49.8491 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
49.85 € *
Price list
Quantity
Price per unit*
1 pcs.
49.8491 €
5 pcs.
44.8630 €
*incl. VAT plus shipping costs
**Subject to prior sale

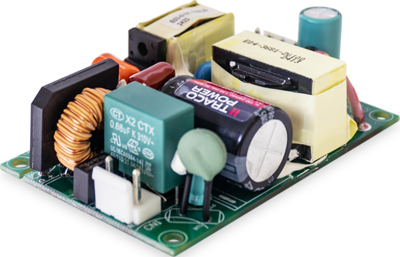

AC/DC Industrial power supply, TXO 120-148-J, TRACO POWER
The TXO 120 is a compact 120 Watt AC/DC open frame module with reinforced I/O isolation designed for a wide range of cost sensitive applications. Excellent temperature behaviour allows the TXO 120 to deliver 100 Watt up to +50°C with convection cooling and 120 Watt up to +50°C with forced air cooling, while going up to +70°C with derating. The TXO 120 features short circuit protection, over current limitation and overvoltage protection and complies with European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact open frame power supply with pin connectors
- Convection cooled (no-fan)
- Short circuit, overvoltage and overload protection
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 48 VDC | |
| Output current | 2.5 A | |
| Width | 50.8 mm | |
| Input voltage AC | 90-264 VAC | |
| Length | 76.2 mm | |
| Power | 120 W | |
| Depth | 22 mm | |
| efficiency | 92 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
