TXO 300-124-J | TRACO POWER

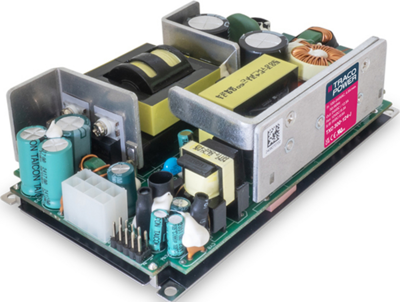

Open frame switching power supply, 24 VDC, 12.5 A, 300 W, TXO 300-124-J
Unit Price (€ / pc.)
95.4618 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
95.46 € *
Price list
Quantity
Price per unit*
1 pcs.
95.4618 €
5 pcs.
85.9180 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC/DC Industrial power supply, TXO 300-124-J, TRACO POWER
The TXO 300 is a AC/DC open frame power supply with 300 Watt and a 3000 VAC reinforced isolation system. Our TXO line specifically focuses on providing cost efficient industrial power supplies. High efficiency of up to 88% allows a compact design and an operating temperature range of -20°C to +50°C without derating, while going up to +70°C with load derating. It features remote control, comes with an active power factor correction and EMC characteristics dedicated for applications in industrial/automation and test & measurement fields. It makes the products an ideal solution for various industrial and cost sensitive applications.
Features
- Industrial AC/DC power supplies for cost sensitive applications
- Protection class II prepared
- Remote control
- Short circuit, overvoltage and overload protection
- Over temperature switch off
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 12.5 A | |
| Width | 76.2 mm | |
| Input voltage AC | 90-264 VAC/120-370 VDC | |
| Length | 127 mm | |
| Power | 300 W | |
| Depth | 41.4 mm | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
