TXO 45-124-J | TRACO POWER

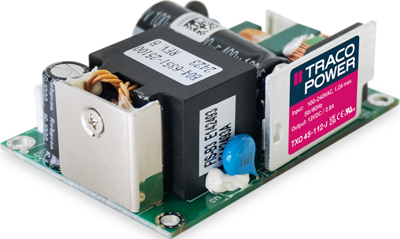

Open frame switching power supply, 24 VDC, 1.9 A, 45 W, TXO 45-124-J
Unit Price (€ / pc.)
24.5616 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
24.56 € *
Price list
Quantity
Price per unit*
1 pcs.
24.5616 €
5 pcs.
22.1102 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC/DC Industrial power supply, TXO 45-124-J, TRACO POWER
The TXO 45 is a compact 45 Watt AC/DC open frame module with reinforced I/O isolation designed for a wide range of cost sensitive applications. Excellent temperature behaviour allows full load operation from -20°C to +50°C while going up to +70°C with derating. The TXO 45 features short circuit protection, over current limitation and overvoltage protection and complies with European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact open frame power supply with pin connectors
- Convection cooled (no-fan)
- Short circuit, overvoltage and overload protection
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 1.9 A | |
| Breite | 50.8 mm | |
| Eingangsspannungsbereich | 85-264 VAC/120-370 VDC | |
| Länge | 76.2 mm | |
| Leistung | 45 W | |
| Tiefe | 24 mm | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
