TBA 1-1212E | TRACO POWER
DC/DC converter, 10.8-13.2 VDC, 1 W, 1 output, 12 VDC, 80 % efficiency, TBA 1-1212E
Unit Price (€ / pc.)
3.5224 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale

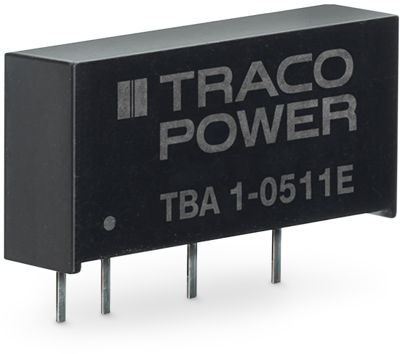

DC/DC converters, Traco TBA 1-1212E
The TBA 1E is an elementary 1 Watt DC/DC SIP converter series which is specifically designed to offer a low-cost solution with no concession on quality and lifetime. The new design improves on the industry standard features and offers an integrated continuous short circuit protection circuit, an operating temperature range from –40°C to 85°C without derating and I/O-isolations of either 1’500 VDC. It offers a broad application range in any space and cost critical application.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 84 mA | |
| Design | SIP7 | |
| Width | 6 mm | |
| Input voltage AC | 10.8-13.2 VDC | |
| Height | 9.6 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 19.5 mm | |
| Power | 1 W | |
| efficiency | 80 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
