TCL 012-124DC | TRACO POWER

DC converter, 9.5-18 VDC, 24 W, 1 output, 24 VDC, 86 % efficiency, TCL 012-124DC

Order No.: 25K3050
EAN: 4099891297008
MPN:
TCL 012-124DC
Series: TCL DC
TCL 012-124DC TRACO POWER DC/DC Converters Image 1
TCL 012-124DC TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
80.8843 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
80.88 € *
Price list
Quantity
Price per unit*
1 pcs.
80.8843 €
10 pcs.
72.7923 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco TCL..DC.

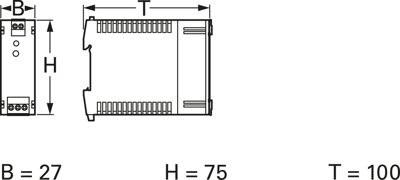

24 W converter with ultra-wide input ranges and variable output voltage. Suitable for snap-on mounting on DIN or wall mounting (supplied with adapter). Compact plastic enclosure. Short-circuit and overload protection; Interference suppression: EN 55022 class B. Immunity to interference: EN 61000-6-2. Residual ripple: max. 50 mVpp, MTBF (+25 °C): >2.5 million h. Operating temperatures: –25 to +70 °C. Connection: plug-in screw terminals. Dimensions: W 27, H 75, D 100 mm. Weight: 140 g.

Input 9.5 to 18 VDC, type TCL..DC.

Technical attributes (type, output voltage/adjustment range, output current): TCL 012-124 DC, output 24 VDC/24 to 28 VDC, 1.0 A

Technical specifications
Number of outputs 1
Output current 1 A
Output voltage DC 24 VDC
Input voltage AC 9,5-18 VDC
Power 24 W
efficiency 86 %
Design DIN-Schiene
Isolation voltage 1.5 kV
Length 100 mm
Width 27 mm
Height 75 mm
Logistics
Country of origin CN
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
