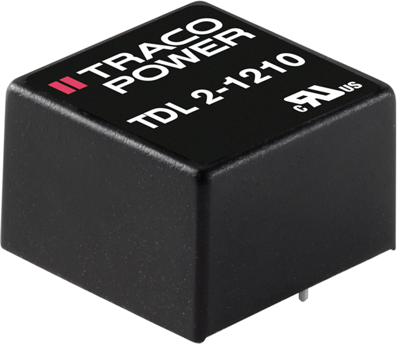

TDL 2-0512 | TRACO POWER
DC/DC converter, 4.5-10 VDC, 2 W, 1 output, 12 VDC, 85 % efficiency, TDL 2-0512
Unit Price (€ / pc.)
19.2185 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
19.22 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2185 €
10 pcs.
17.2788 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC/DC converters, Traco TDL 2-0512
The TDL 2 series with 2:1 input voltage range is a selection of 2 Watt regulated dc/dc-converters. They come in a very compact DIP package (0.55 x 0.55 x 0.31 inch).
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 167 mA | |
| Design | DIP7 | |
| Width | 14 mm | |
| Input voltage AC | 4.5-10 VDC | |
| Height | 8 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 14 mm | |
| Power | 2 W | |
| efficiency | 85 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
