TDN 3-1213WI | TRACO POWER

DC/DC converter, 4.5-18 VDC, 3 W, 1 output, 15 VDC, 84 % efficiency, TDN 3-1213WI

Order No.: 34C1042
EAN: 4099891336431
MPN:
TDN 3-1213WI
Series: TDN 3WI
TRACO POWER

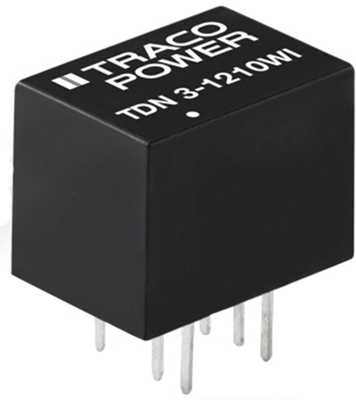

TDN 3-1213WI TRACO POWER DC/DC Converters Image 1
TDN 3-1213WI TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
23.2526 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
23.25 € *
Price list
Quantity
Price per unit*
1 pcs.
23.2526 €
10 pcs.
20.9202 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD DC converters, type Traco TES2N.

Controlled 2.0 W converter; with 2 : 1 extended-range input, input filter to EN 55022, sustained short circuit-proof. Insulation voltage: I/O: 1500 VDC. Adjustment tolerance: ±2.0 %. Input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic.

Mit Eingangsspannung 4,5 bis 18 VDC.

Technical attributes (type, input voltage, output voltage, output current (± double), efficiency ): TES2N-2411, 18 - 36 VDC, 1 x OUT, 5.0 VDC, 400 mA, 77 %

Technical specifications
Number of outputs 1
Output voltage DC 15 VDC
Output current 200 mA
Design DIP7
Width 9.1 mm
Input voltage AC 4.5-18 VDC
Height 10.2 mm
Isolation voltage 1.5 kV
Length 13.2 mm
Power 3 W
efficiency 84 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
