TDN 3-4819WI | TRACO POWER
DC/DC converter, 18-75 VDC, 3 W, 1 output, 9 VDC, 81 % efficiency, TDN 3-4819WI
Unit Price (€ / pc.)
23.7167 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
23.72 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7167 €
10 pcs.
21.3367 €
*incl. VAT plus shipping costs
**Subject to prior sale

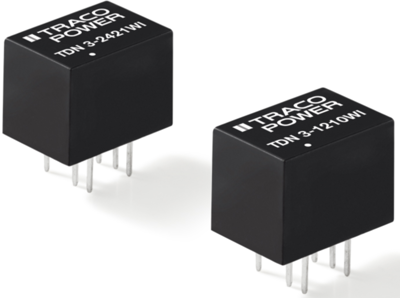

DC/DC converters, Traco TDN 3-4819WI
The TDN 3WI series is a range of 3 Watt regulated dc/dc-converters. They come in a very compact DIP package (0.52 x 0.36 x 040 inch). The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 9 VDC | |
| Ausgangsstrom | 333 mA | |
| Bauform | DIP7 | |
| Breite | 9 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 14 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 13 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 81 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
