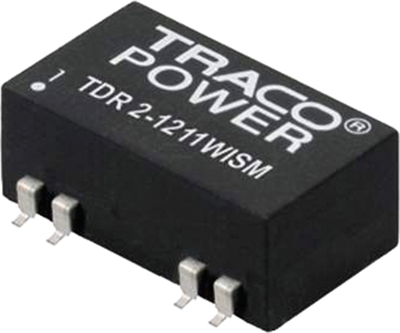

TDR 2-1211WISM | TRACO POWER
DC converter, 4.5-18 VDC, 2 W, 1 output, 5 VDC, 79 % efficiency, TDR 2-1211WISM
Unit Price (€ / pc.)
29.7024 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
29.70 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7024 €
10 pcs.
26.7393 €
*incl. VAT plus shipping costs
**Subject to prior sale

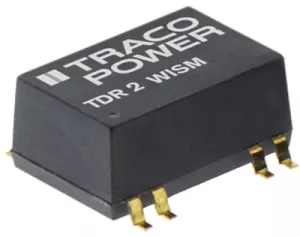

SMD DC converters, type Traco TDR 2-..WISM.
2.0 W version in SMD package; Features: 4 : 1 extended-range input, no basic load necessary, sustained short circuit-proof, regulated outputs, external On/Off. Control error: on input fluctuation ±0.2 %, on load fluctuation ±1.0 %. Residual ripple: 30 mVpp (20 MHz bandwidth). I/O insulation voltage: 1500 VDC. Operating temperatures: –40 to +85 °C.
Input voltage range from 4.5 to 18 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TDR 2-1211WISM, 1 x OUT, 5.0 VDC, 400 mA, 79 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 400 mA | |
| Bauform | SMD | |
| Breite | 12.8 mm | |
| Eingangsspannungsbereich | 4,5-18 VDC | |
| Höhe | 8.7 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 18.9 mm | |
| Leistung | 2 W | |
| Wirkungsgrad | 79 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
