TDR 2-2413WI | TRACO POWER
DC/DC converter, 9-36 VDC, 2 W, 1 output, 15 VDC, 82 % efficiency, TDR 2-2413WI
Unit Price (€ / pc.)
28.7980 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
28.80 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7980 €
10 pcs.
25.9063 €
*incl. VAT plus shipping costs
**Subject to prior sale

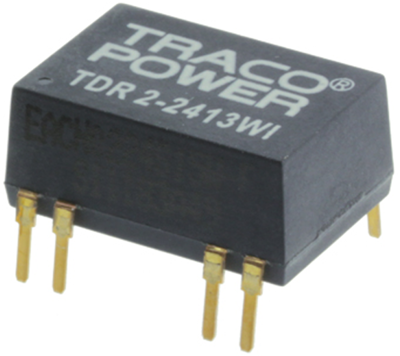

DC/DC converters, Traco TDR 2-2413WI
The TDR-2WI series is a family of compact 2 W dc/dc-converters with 4:1 input voltage ranges and tightly regulated output voltages even under no load conditions. The product is available in SMD-package or in DIP-package. They work with high efficiency over the full load range and come with a remote On/Off input. The usability in temperature ranges of up to 85°C without power derating, continuous short circuit protection and excellent immunity against environmental influences make these converters very reliable. A TDR-2WI converter is the ideal solution for space critical high end applications in communication equipment, instrumentation and industrial electronics.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 134 mA | |
| Design | DIP14 | |
| Width | 12.8 mm | |
| Input voltage AC | 9-36 VDC | |
| Height | 8.7 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 18.9 mm | |
| Power | 2 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
