TDR 2-4822WI | TRACO POWER
DC converter, 18-75 VDC, 2 W, 2 outputs, ±12 VDC, 81 % efficiency, TDR 2-4822WI
Unit Price (€ / pc.)
30.8329 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
30.83 € *
Price list
Quantity
Price per unit*
1 pcs.
30.8329 €
10 pcs.
27.7508 €
*incl. VAT plus shipping costs
**Subject to prior sale

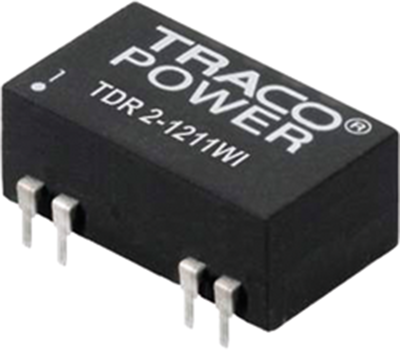

DC converters, type Traco TDR 2-.
2.0 W version in DIL-14 package; Features: 4 : 1 extended-range input, no basic load necessary, sustained short circuit-proof, regulated outputs, external On/Off. Control error: on input fluctuation max. 0.2 %, on load fluctuation max. 1.0 %. Residual ripple: 30 mVpp (20 MHz bandwidth). I/O insulation voltage: 1500 VDC. Operating temperatures: –40 to +85 °C. Stand-by current: 2.5 mA.
Input voltage range from 18 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TDR 2-4822WI, 2 x OUT, ±12 V, ±83 mA, 81 %
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 83 mA | |

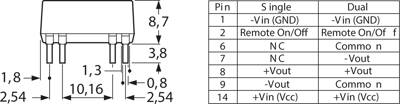

| Bauform | DIP14 | |
| Breite | 12.8 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 8.7 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 18.9 mm | |
| Leistung | 2 W | |
| Wirkungsgrad | 81 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
