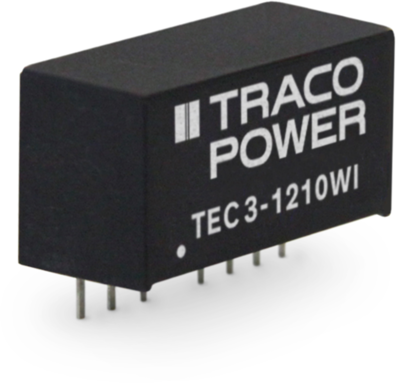

TEC 3-4810WI | TRACO POWER
DC/DC converter, 18-75 VDC, 3 W, 1 output, 3.3 VDC, 74 % efficiency, TEC 3-4810WI
Unit Price (€ / pc.)
15.1011 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
15.10 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1011 €
10 pcs.
13.5779 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC/DC converters, Traco TEC 3-4810WI
TEC 3WI is a new series with the design purpose to improve the prevalent 3 Watt SIP-8 DC/DC converters in terms of cost, efficiency and performance. The latest technology and components effectuate a high efficiency for a low thermal loss. This enables an operating temperature range from -40°C up to +90°C. The converters are fully regulated over 0 - 100% load (no minimum load is required). The models are available with ultra-wide input ranges of 4.5-18, 9-36 and 18-75 VDC. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 3.3 VDC | |
| Output current | 700 mA | |
| Design | SIP8 | |
| Width | 9.1 mm | |
| Input voltage AC | 18-75 VDC | |
| Height | 11.2 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 21.8 mm | |
| Power | 3 W | |
| efficiency | 74 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
