TEC 3-4811WI | TRACO POWER

DC converter, 18-75 VDC, 3 W, 1 output, 5 VDC, 80 % efficiency, TEC 3-4811WI

Order No.: 32C3844
EAN: 4099891326791
MPN:
TEC 3-4811WI
Series: TEC 3WI
TEC 3-4811WI TRACO POWER DC/DC Converters

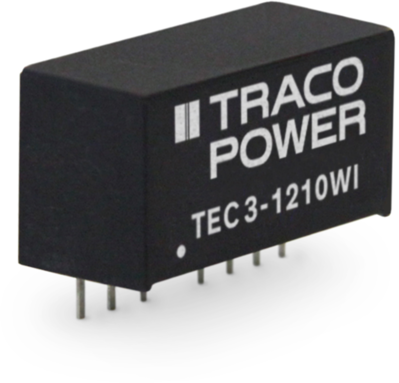

Image may differ
Unit Price (€ / pc.)
15.3986 € *
Available: 0 pcs.
Next delivery: 6 pcs. on 2025-05-09
Leadtime: 20 Weeks **
Total Price:
15.40 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3986 €
10 pcs.
13.8516 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco TEC 3-4811WI

TEC 3WI is a new series with the design purpose to improve the prevalent 3 Watt SIP-8 DC/DC converters in terms of cost, efficiency and performance. The latest technology and components effectuate a high efficiency for a low thermal loss. This enables an operating temperature range from -40°C up to +90°C. The converters are fully regulated over 0 - 100% load (no minimum load is required). The models are available with ultra-wide input ranges of 4.5-18, 9-36 and 18-75 VDC. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.

Technical specifications
Number of outputs 1
Output current 600 mA
Output voltage DC 5 VDC
Input voltage AC 18-75 VDC
Power 3 W
efficiency 80 %
Design SIP8
Isolation voltage 1.6 kV
Length 21.8 mm
Width 9.1 mm
Height 11.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
