TEL 15-2411 | TRACO POWER
DC/DC converter, 18-36 VDC, 15 W, 1 output, 5.1 VDC, 81 % efficiency, TEL 15-2411
Unit Price (€ / pc.)
45.9102 € *
Available: 9 pcs.
Leadtime: 14 Weeks **
Total Price:
45.91 € *
Price list
Quantity
Price per unit*
1 pcs.
45.9102 €
10 pcs.
41.3168 €
*incl. VAT plus shipping costs
**Subject to prior sale

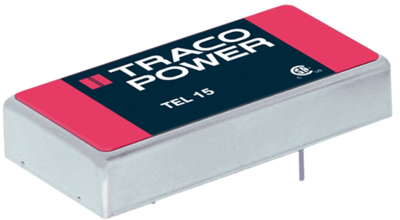

DC converters, type Traco TEL 15-.
15 W converter with 2 : 1 extended-range input and high efficiency. In shielded metal package with insulated base plate. Industrial standard pin-out, sustained short circuit-proof. Input voltage fluctuation: ±1.0 %. Load fluctuation: ±0.5 % on single output, ±1.0 % on dual output (symmetrical), ±3.0 % on dual output (unbalanced). Residual ripple single/dual output: 50/75 mVpp. Operating temperatures: –40 to +71 °C. I/O insulation voltage: 1500 VDC, MTBF (+25 °C): >700000 h.
Technical attributes (type, input voltage range, output voltage/ output current, typical efficiency): TEL 15-2411, 18 - 36 VDC, 5.1 VDC/3.0 A, 81 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5,1 VDC | |
| Ausgangsstrom | 3 A | |
| Bauform | DIP5 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 50.8 mm | |
| Leistung | 15 W | |
| Wirkungsgrad | 81 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
