TEL 15-2422 | TRACO POWER
DC/DC converter, 18-36 VDC, 15 W, 2 outputs, ±12 VDC, 86 % efficiency, TEL 15-2422
Unit Price (€ / pc.)
49.4326 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
49.43 € *
Price list
Quantity
Price per unit*
1 pcs.
49.4326 €
10 pcs.
44.4941 €
*incl. VAT plus shipping costs
**Subject to prior sale

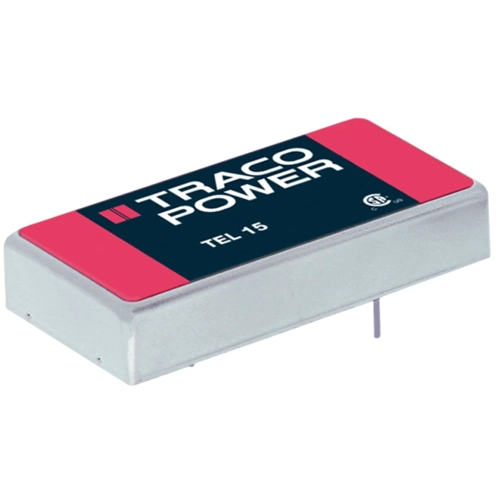

DC converters, type Traco TEL 15-.
15 W converter with 2 : 1 extended-range input and high efficiency. In shielded metal package with insulated base plate. Industrial standard pin-out, sustained short circuit-proof. Input voltage fluctuation: ±1.0 %. Load fluctuation: ±0.5 % on single output, ±1.0 % on dual output (symmetrical), ±3.0 % on dual output (unbalanced). Residual ripple single/dual output: 50/75 mVpp. Operating temperatures: –40 to +71 °C. I/O insulation voltage: 1500 VDC, MTBF (+25 °C): >700000 h.
Technical attributes (type, input voltage range, output voltage/ output current, typical efficiency): TEL 15-2422, 18 - 36 VDC, ±12 VDC/±0.625 A, 86 %
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 625 mA | |
| Bauform | DIP5 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 50.8 mm | |
| Leistung | 15 W | |
| Wirkungsgrad | 86 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
