TEL 2-4822 | TRACO POWER
DC/DC converter, 36-75 VDC, 2 W, 2 outputs, ±12 VDC, 77 % efficiency, TEL 2-4822
Unit Price (€ / pc.)
16.6124 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
16.61 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6124 €
10 pcs.
14.9345 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TEL2-.
2.0 W converter, sustained short circuit-proof, in DiL package (16-pin), regulated output; Insulation voltage: 1500 VDC. Adjustment tolerance: 2.0 %. Control error on input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 % (±2.0 % on dual output). Residual ripple: 50 mVpp. Operating temperatures: –40 to +75 °C. Package: plastic.
Technical attributes (type, input voltage, output voltage/output current (±double)): TEL2-4822, 36 - 72 VDC, 2 x OUT, ±12 VDC/±85 mA
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 85 mA | |

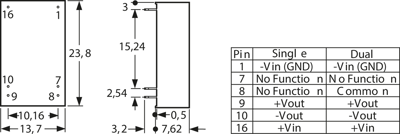

| Bauform | DIP16 | |
| Breite | 13.7 mm | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Höhe | 8 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 23.8 mm | |
| Leistung | 2 W | |
| Wirkungsgrad | 77 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
