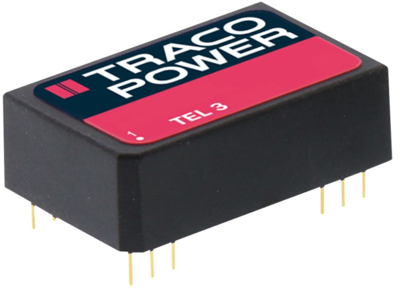

TEL 3-2022 | TRACO POWER
DC/DC converter, 10-30 VDC, 3 W, 2 outputs, ±12 VDC, 80 % efficiency, TEL 3-2022
Unit Price (€ / pc.)
25.5255 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
25.53 € *
Price list
Quantity
Price per unit*
1 pcs.
25.5255 €
10 pcs.
22.9789 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TEL 3-.
3.0 W converter in DiL 24 package, SMD technology, sustained circuit-proof, high efficiency; Input voltage range 2 : 1. Regulated outputs and I/O insulation voltage 1500 VDC. Output voltage adjustment tolerance: ±1.0 %. Control error: on input voltage fluctuation ±0.5 %, on load fluctuation ±0.5 %, ±1.0 % at dual output. Residual ripple: 60 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic, non-conductive, black.
Technical attributes (type, input voltage range, output voltage/output current (± double)): TEL 3-2022, 10 - 30 VDC, 2 x OUT, ±12 VDC/±125 mA
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 125 mA | |
| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 10-30 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 31.8 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 80 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
