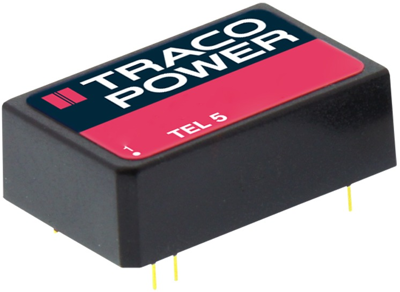

TEL 5-2411 | TRACO POWER
DC/DC converter, 18-36 VDC, 5 W, 1 output, 5 VDC, 83 % efficiency, TEL 5-2411
DC converters, type Traco TEL 5-.
5; .0 W converter with 2 : 1 extended-range input, high performance level, high efficiency. Features: sustained short circuit-proof, input filter to EN 55022, plastic case to UL 94 V-0. Input current no-load/full load: 20 mA/590 mA at 12 V, 5.0 mA/290 mA at 24 V. Adjustment tolerance: ±1.0 %. Input voltage fluctuation: ±0.3 %. Load fluctuation single/dual output: 1.0 %/2.0 %. Residual ripple: max. 75 mVpp. Temperature coefficient: ±0.02 %/K. Operating temperatures: –40 to +85 °C. MTBF: >1.0 million hours at +25 °C. I/O test voltage: 1500 VDC. Insulation resistance: >1000 Mohm. Switching frequency: 300 kHz.
Technical attributes (type, function, input voltage range, number of outputs (OUT), output voltage/output current, typical efficiency): TEL 5-2411, 18 - 36 VDC, 1 x OUT 5.0 VDC/ 1000 mA, 83 %
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 1 A | |
| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 31.8 mm | |
| Leistung | 5 W | |
| Wirkungsgrad | 83 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 10 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
