TEN 20-2422WIN | TRACO POWER

DC converter, 9-36 VDC, 20 W, 2 outputs, ±12 VDC, 87 % efficiency, TEN 20-2422WIN

Order No.: 26K2984
EAN: 4099891300272
MPN:
TEN 20-2422WIN
Series: TEN 20WIN

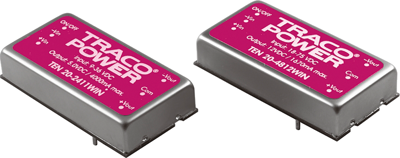

TEN 20-2422WIN TRACO POWER DC/DC Converters Image 1

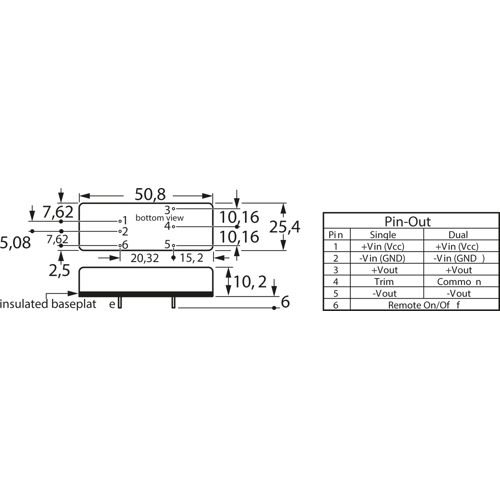

TEN 20-2422WIN TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
61.2017 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
61.20 € *
Price list
Quantity
Price per unit*
1 pcs.
61.2017 €
10 pcs.
55.0732 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco TEN 20WIN.

20 W version with ultimate performance density and 4 : 1 extended-range inputs, sustained short circuit-proof, shielded metal package with insulated base plate, industrial standard pinning. Input voltage fluctuation: ±0.2 %. Load fluctuation on single/dual output: ±0.5/±1.0 % Residual ripple on single/dual output: 75/100 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: 560000 h at +25 °C.

Technical attributes (type, input voltage range, output voltage/output current, efficiency): TEN 20-2422WIN, 9.0 - 36 VDC, 2 x OUT, ±12 VDC/±0.835 A, 87 %

Technical specifications
Number of outputs 2
Output current 835 mA
Output voltage DC ±12 VDC
Input voltage AC 9-36 VDC
Power 20 W
efficiency 87 %
Design DIP6
Isolation voltage 1.5 kV
Length 50.8 mm
Width 25.4 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
