TEN 3-2412N | TRACO POWER
DC/DC converter, 18-36 VDC, 3 W, 1 output, 12 VDC, 85 % efficiency, TEN 3-2412N
Unit Price (€ / pc.)
14.3514 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
14.35 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3514 €
10 pcs.
12.9234 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TEN 3..N.
3.0 W converter, integrated filter to EN 55022 class A, FCC Level A; Features: 2 : 1 extended-range input, 24 pin DIP standard pinning. Output voltage tolerance: ±2.0 %. Residual ripple: 70 mVpp. Operating temperatures: –40 to +85 °C. I/O test voltage: 1500 V. Insulation resistance: min. 1.0 Gohm. MTBF: 1.0 million h at +25 °C.
Input voltage range from 18 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TEN 3-2412N, 1 x OUT, 12 VDC, 250 mA, 85 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 250 mA | |

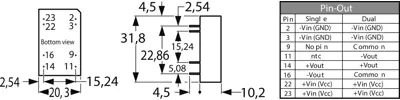

| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 31.8 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
