TEN 30-7215UIR | TRACO POWER

30 watt DC/DC converter, railway, 12:1 input, 3000VDC isolation, PCB-mount, 2”x1”

Order No.: 35C1200
EAN: 7613441075617
MPN:
TEN 30-7215UIR
Series: TEN 30UIR
TRACO POWER
TEN 30-7215UIR TRACO POWER DC/DC Converters

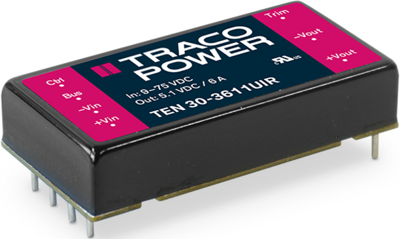

Image may differ
Unit Price (€ / pc.)
94.9858 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
94.99 € *
Price list
Quantity
Price per unit*
1 pcs.
94.9858 €
10 pcs.
85.4896 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC Converter, TEN 30-7215UIR, TRACO POWER

The TEN 30UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 30 watt. The TEN 30UIR comes in a compact, fully encapsulated 2”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the TEN 30UIR meets extended holdup-time requirements without the need for bulky input capacitors. The TEN 30UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The TEN 30UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.

Features

  • Dedicated holdup capacitor connection
  • Fully encapsulated
  • Remote on/off and trim function
  • Protection against short-circuit (SCP)
  • Overvoltage (OVP)
  • Overtemperature (OTP)
Technical specifications
Number of outputs 1
Output voltage DC 24 VDC
Output current 1250 mA
Width 25.4 mm
Input voltage AC 14-160 VDC
Height 10.2 mm
Isolation voltage 3 kV
Length 50.8 mm
Power 30 W
efficiency 90 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
