TEN 40-11013WIRH | TRACO POWER
DC/DC converter, 36-160 VDC, 40 W, 1 output, 15 VDC, 90 % efficiency, TEN 40-11013WIRH
Unit Price (€ / pc.)
87.8101 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
87.81 € *
Price list
Quantity
Price per unit*
1 pcs.
87.8101 €
10 pcs.
79.0279 €
*incl. VAT plus shipping costs
**Subject to prior sale

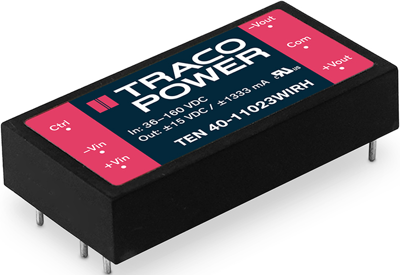

DC/DC Converter, TEN 40-11013WIRH, TRACO POWER
The TEN 40WIRH is a 40 watt railway-certified DC/DC converter with reinforced I/O isolation for highest reliability in harsh environments. The proven and certified design guarantees highest resistance against thermal shocks, moisture, mechanical shocks, and vibration. The TEN 40WIRH comes with additional EN 62368-1 safety approvals for IT equipment and EN 45545-2 certification for fire behavior. Thanks to its favorable operating temperature range of -40°C up to +70°C (depending on the model), the TEN 40WIRH presents a first choice for demanding applications.
Features
- Internal class A EMI filter
- Remote on/off function
- Undervoltage lockout (UVLO)
- Short-circuit protection (SCP)
- Overtemperature protection (OTP)
- Overvoltage protection (OVP)
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 2666 mA | |
| Width | 25.4 mm | |
| Input voltage AC | 36-160 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 3 kV | |
| Length | 50.8 mm | |
| Power | 40 W | |
| efficiency | 90 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
