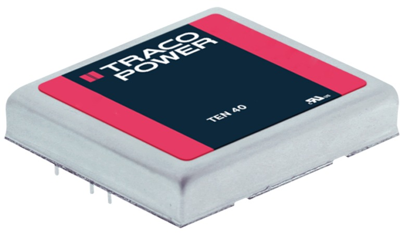

TEN 40-1212 | TRACO POWER
DC/DC converter, 9-18 VDC, 40 W, 1 output, 12 VDC, 86 % efficiency, TEN 40-1212
Unit Price (€ / pc.)
94.0814 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
94.08 € *
Price list
Quantity
Price per unit*
1 pcs.
94.0814 €
10 pcs.
84.6685 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC converters, type Traco TEN 40.
40 W converter with 2 : 1 extended-range inputs, high performance level. Features: sustained short circuit-proof, shielded metal package with insulated base plate, industrial standard pinning. Control error on input fluctuation (single/dual/triple output): ±0.5/±1.0/±1.0 %. Control error on load fluctuation (single/dual/triple output): ±0.5/±1.0/±2.0 %. Residual ripple: 50 mVpp on 5.0 V output, 150 mVpp on dual outputs, 75 mVpp on 12 V output. Operating temperatures: –40 to +75 °C. I/O insulation voltage: 1500 VDC. MTBF: 360000 h at +25 °C.
Input voltage range from 9.0 to 18 VDC.
Technical attributes (type, number of outputs, output voltage/output current, efficiency): TEN 40-1212, 1 x OUT, 12 VDC/3.3 A, 86 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 3.3 A | |
| Bauform | Modul | |
| Breite | 50.8 mm | |
| Eingangsspannungsbereich | 9-18 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 50.8 mm | |
| Leistung | 40 W | |
| Wirkungsgrad | 86 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
