TEN 40-7211WIR | TRACO POWER
DC/DC converter, 43-160 VDC, 40 W, 1 output, 5 VDC, 89 % efficiency, TEN 40-7211WIR
Unit Price (€ / pc.)
120.4518 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
120.45 € *
Price list
Quantity
Price per unit*
1 pcs.
120.4518 €
10 pcs.
108.3971 €
*incl. VAT plus shipping costs
**Subject to prior sale

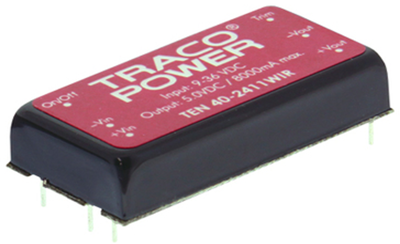

DC/DC converters, Traco TEN 40-7211WIR
The TEN 40WIR series is a family of high performance 40 Watt dc/dc converter modules featuring ultra wide 4:1 input voltage ranges in a 2” x 1” package with industry-standard footprint. Input voltages up to 160 VDC, excellent EMC characteristics and EN 50155 approval make this product the best choice for many demanding applications in railroad and transportation systems. Further standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. Low input current characteristics at minimal load make these converters also the ideal solution for battery-operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 8 A | |
| Bauform | DIP6 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 43-160 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.6 kV | |
| Länge | 50.8 mm | |
| Leistung | 40 W | |
| Wirkungsgrad | 89 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
