TEN 40-7222UIR | TRACO POWER
DC/DC converter, 14-160 VDC, 40 W, 2 outputs, ±12 VDC, 90 % efficiency, TEN 40-7222UIR
Unit Price (€ / pc.)
101.0310 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
101.03 € *
Price list
Quantity
Price per unit*
1 pcs.
101.0310 €
10 pcs.
90.9279 €
*incl. VAT plus shipping costs
**Subject to prior sale

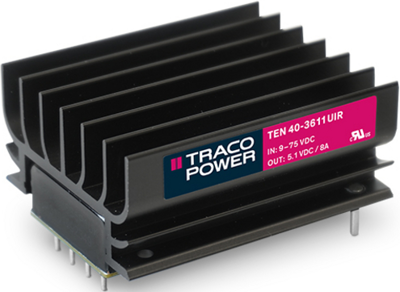

DC/DC Converter, TEN 40-7222UIR, TRACO POWER
The TEN 40UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 40 watt. The TEN 40UIR comes in a compact, fully encapsulated 2”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the TEN 40UIR meets extended holdup-time requirements without the need for bulky input capacitors. The TEN 40UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The TEN 40UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.
Features
- Dedicated holdup capacitor connection
- Fully encapsulated
- Remote on/off and trim function
- Protection against short-circuit (SCP)
- Overvoltage (OVP)
- Overtemperature (OTP)
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±12 VDC | |
| Output current | 1670 mA | |
| Width | 25.4 mm | |
| Input voltage AC | 14-160 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 3 kV | |
| Length | 50.8 mm | |
| Power | 40 W | |
| efficiency | 90 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
