TEN 5-0523 | TRACO POWER
DC/DC converter, 4.5-7 VDC, 6 W, 2 outputs, ±15 VDC, 82 % efficiency, TEN 5-0523
Unit Price (€ / pc.)
40.7575 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
40.76 € *
Price list
Quantity
Price per unit*
1 pcs.
40.7575 €
10 pcs.
36.6758 €
*incl. VAT plus shipping costs
**Subject to prior sale

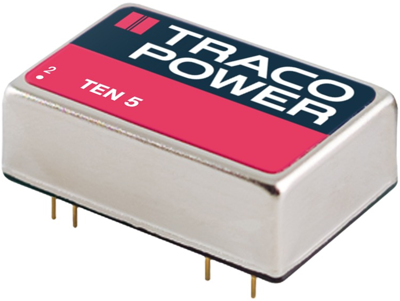

DC/DC converters, Traco TEN 5-0523
The TEN 5 Series is a range of DC/DC-converter modules with wide input range of 2:1. State of the art SMD-technology guarantees a product with very high reliability and good cost /performance ratio. High efficiency allows an operating temperature range of –40°C to +85°C. I/O-isolation of 1’500 VDC together with conducted noise compliance to EN 55022-A and FCC, level A makes these converters ideal for a wide range of applications in communications, mobile battery powered equipment and industrial systems.
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 200 mA | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 4.5-7 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Power | 6 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
