TEN 5-1221 | TRACO POWER
DC/DC converter, 9-18 VDC, 5 W, 2 outputs, ±5 VDC, 81 % efficiency, TEN 5-1221
DC converters, type Traco TEN 5-.
6.0 W converters; Features: 2 : 1 extended-range input, high efficiency, regulated outputs, short circuit-proof, input filter for RF suppression to EN 55022 class A and FCC level A. Shielded metal package with insulated base plate, 24-pin DiP standard pinning. Reliability: 1.0 million h at +25 °C. No-load input current/100 %: 20 mA/590 mA on 12 VDC, 5.0 mA/290 mA on 24 VDC. Adjustment tolerance: ±1.0 %. Input voltage fluctuation: ±0.3 %. Load fluctuation single/dual output: 1.0/2.0 %. Residual ripple: 50 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1500 VDC. Insulation resistance: 1000 Mohm.
Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TEN 5-1221, 9.0 - 18 VDC, 2 x OUT, ±5.0 VDC/±0.5 A, 81 %
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±5 VDC | |
| Ausgangsstrom | 500 mA | |

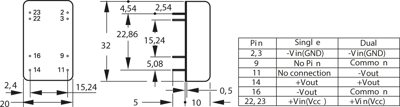

| Bauform | DIP24 | |
| Breite | 20 mm | |
| Eingangsspannungsbereich | 9-18 VDC | |
| Höhe | 10 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 32 mm | |
| Leistung | 5 W | |
| Wirkungsgrad | 81 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 10 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
