TEN 50-2412 | TRACO POWER

DC/DC converter, 18-36 VDC, 50 W, 1 output, 12 VDC, 92 % efficiency, TEN 50-2412

Order No.: 33C957
EAN: 4099891336165
MPN:
TEN 50-2412
Series: TEN 50
TRACO POWER

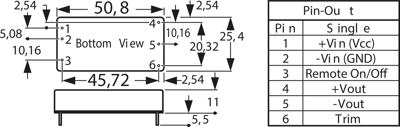

TEN 50-2412 TRACO POWER DC/DC Converters Image 1

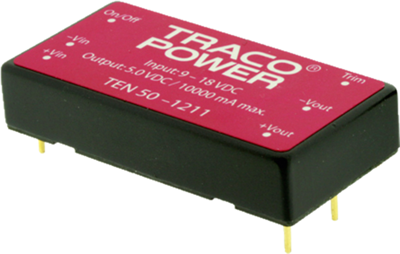

TEN 50-2412 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
92.1417 € *
Available: 7 pcs.
Leadtime: 14 Weeks **
Total Price:
92.14 € *
Price list
Quantity
Price per unit*
1 pcs.
92.1417 €
10 pcs.
82.9192 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC converters, type Traco TEN 50.

50 W converter with 2 : 1 input voltage range, 2.0 x 1.0 inch package, no burden required, overload protection, short circuit-proof, external on/off. Industrial standard pinning. MTBF: 220000 h at +25 °C. Residual ripple: 100 mVpp (3.3 and 5.0 VDC), 150 mVpp (12, 15 and 24 VDC). Switching frequency: 320 kHz (24 VDC = 285 kHz). Temperature coefficient: ±0.02 %/K. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VAC. Insulation resistance: 1000 Mohm.

Input voltage range from 18 to 36 VDC.

Technical attributes (type, number of outputs, output voltage, output current, typical efficiency): TEN 50-2412, 1 x OUT, 12 VDC, 4.167 A, 92 %

Technical specifications
Number of outputs 1
Output voltage DC 12 VDC
Output current 4.167 A
Design DIP6
Width 25.4 mm
Input voltage AC 18-36 VDC
Height 11 mm
Isolation voltage 1.5 kV
Length 50.8 mm
Power 50 W
efficiency 92 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
