TEN 50-4815 | TRACO POWER
DC/DC converter, 36-75 VDC, 50 W, 1 output, 24 VDC, 91 % efficiency, TEN 50-4815
Unit Price (€ / pc.)
93.9862 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
93.99 € *
Price list
Quantity
Price per unit*
1 pcs.
93.9862 €
10 pcs.
84.5733 €
*incl. VAT plus shipping costs
**Subject to prior sale

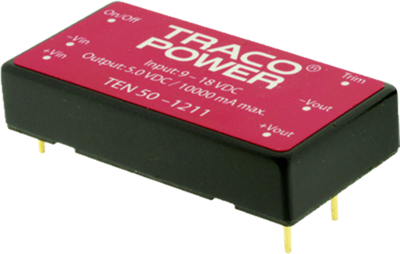

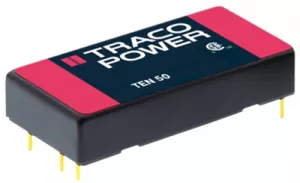

DC converters, type Traco TEN 50.
50 W converter with 2 : 1 input voltage range, 2.0 x 1.0 inch package, no burden required, overload protection, short circuit-proof, external on/off. Industrial standard pinning. MTBF: 220000 h at +25 °C. Residual ripple: 100 mVpp (3.3 and 5.0 VDC), 150 mVpp (12, 15 and 24 VDC). Switching frequency: 320 kHz (24 VDC = 285 kHz). Temperature coefficient: ±0.02 %/K. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VAC. Insulation resistance: 1000 Mohm.
Input voltage range from 36 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, typical efficiency): TEN 50-4815, 1 x OUT, 24 VDC, 2.08 A, 91 %

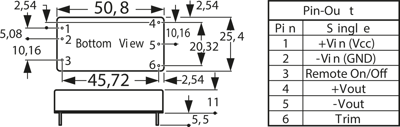

Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 2.08 A | |
| Bauform | DIP6 | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Höhe | 11 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 50.8 mm | |
| Leistung | 50 W | |
| Wirkungsgrad | 91 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
