TEN 60-2422N | TRACO POWER
DC/DC converter, 18-36 VDC, 60 W, 2 outputs, ±12 VDC, 90 % efficiency, TEN 60-2422N
Unit Price (€ / pc.)
122.7485 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
122.75 € *
Price list
Quantity
Price per unit*
1 pcs.
122.7485 €
10 pcs.
110.4677 €
*incl. VAT plus shipping costs
**Subject to prior sale

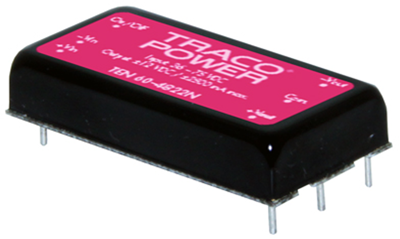

DC/DC converters, Traco TEN 60-2422N
The TEN 60N series is a family of high performance 60 Watt dc/dc converter modules featuring wide 2:1 input voltage ranges in a six side shielded 2” x 1”metal package with industry standard footprint. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for battery-operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±12 VDC | |
| Output current | 2.5 A | |
| Design | DIP6 | |
| Width | 25.4 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Power | 60 W | |
| efficiency | 90 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
