TEN 60-4815 | TRACO POWER

DC converter, 36-75 VDC, 60 W, 1 output, 24 VDC, 89 % efficiency, TEN 60-4815

Order No.: 32C1530
EAN: 4099891307516
MPN:
TEN 60-4815
Series: TEN 60
TEN 60-4815 TRACO POWER DC/DC Converters

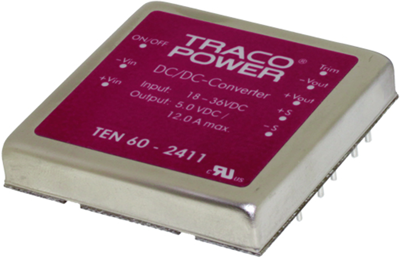

Image may differ
Unit Price (€ / pc.)
113.7283 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
113.73 € *
Price list
Quantity
Price per unit*
1 pcs.
113.7283 €
10 pcs.
102.3519 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco TEN 60-4815

The TEN 60 series is a family of high performance 60W dc-dc converter modules with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of –40°C to 85°C. Built-in filters for both input and output minimizes the need for external filtering. Further standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout and short circuit protection. Typical applications for these products are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.

Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 24 VDC
Ausgangsstrom 2.5 A
Bauform DIP8
Breite 45.7 mm
Eingangsspannungsbereich 36-75 VDC
Höhe 10.2 mm
Isolationsspannung 1.6 kV
Länge 50.8 mm
Leistung 60 W
Wirkungsgrad 89 %
Logistics
Ursprungsland TW
Zolltarifnummer 85044095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
