TEN 8-1221 | TRACO POWER
DC converter, 9-18 VDC, 8 W, 2 outputs, ±5 VDC, 83 % efficiency, TEN 8-1221
Unit Price (€ / pc.)
34.9146 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
34.91 € *
Price list
Quantity
Price per unit*
1 pcs.
34.9146 €
10 pcs.
31.4279 €
*incl. VAT plus shipping costs
**Subject to prior sale

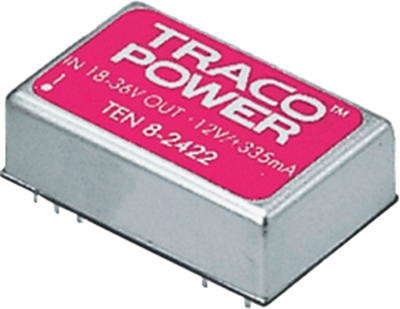

DC converters, type Traco TEN 8-.
8.0 W version in DiL 24 package; with 2 : 1 extended-range inputs and high efficiency. Features: sustained short circuit-proof, input filter to EN 55022 (class A and FCC, level A), shielded metal package with insulated base plate, industrial standard pin-out. on input voltage fluctuation: ±0.2 %. Load fluctuation: ±1.0 %. Residual ripple: 50 mVpp (20 MHz BW). Efficiency: up to 88 %. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: 1.2 million h/+25 °C. Package: metal, shielded on 6 sides and with insulated base plate.
Technical attributes (type, input voltage range, output voltage/current): TEN 8-1221, 9.0 - 18 VDC, 2 x OUT, ±5.0 VDC/±0.8 A
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±5 VDC | |
| Ausgangsstrom | 800 mA | |

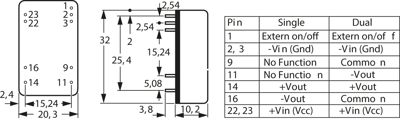

| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 9-18 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 32 mm | |
| Leistung | 8 W | |
| Wirkungsgrad | 83 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
