TEN 8-2410WI | TRACO POWER
DC/DC converter, 9-36 VDC, 8 W, 1 output, 3.3 VDC, 85 % efficiency, TEN 8-2410WI
Unit Price (€ / pc.)
37.6754 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
37.68 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6754 €
10 pcs.
33.9031 €
*incl. VAT plus shipping costs
**Subject to prior sale

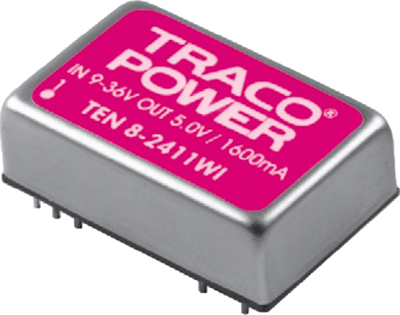

DC converters, type Traco TEN 8..WI.
8.0 W version in DIL 24 package; with 4 : 1 extended-range inputs and zero voltage cut-out. Features: sustained short circuit-proof, shielded metal package and insulated base plate, industrial standard pinning. Adjustment tolerance of the output voltage: ±1.0 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. Insulation voltage: 1500 VDC. MTBF: 1.0 million h/+25 °C.
Input voltage range from 9.0 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TEN 8-2410WI, 1 output, 3.3 VDC, 2000 mA, 85 %

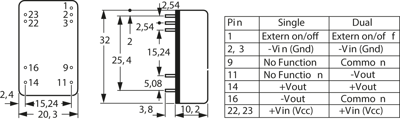

Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 3.3 VDC | |
| Output current | 2.4 A | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 9-36 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 32 mm | |
| Power | 8 W | |
| efficiency | 85 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
