TEN 8-4813 | TRACO POWER
DC/DC converter, 36-75 VDC, 8 W, 1 output, 15 VDC, 86 % efficiency, TEN 8-4813
Unit Price (€ / pc.)
32.5941 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
32.59 € *
Price list
Quantity
Price per unit*
1 pcs.
32.5941 €
10 pcs.
29.3335 €
*incl. VAT plus shipping costs
**Subject to prior sale

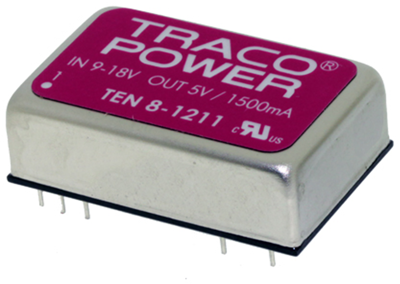

DC/DC converters, Traco TEN 8-4813
The TEN 8 series is a family of high performance 8 Watt dc/dc-converter modules featuring wide 2:1 input voltage ranges in a DIP-24 package with industry standard footprint. A very high efficiency allows an operating temperature range of –40°C to +85°C. A built-in EMI input filter complies with EN 55022, class A without external components. Further standard features include remote On/Off and short circuit protection. Typical applications for these converters are battery operated equipment, instrumentation, communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 15 VDC | |
| Output current | 535 mA | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 36-75 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 32 mm | |
| Power | 8 W | |
| efficiency | 86 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
