TEN 8-4822 | TRACO POWER
DC/DC converter, 36-75 VDC, 8 W, 2 outputs, ±12 VDC, 87 % efficiency, TEN 8-4822
Unit Price (€ / pc.)
34.2244 € *
Available: 10 pcs.
Leadtime: 20 Weeks **
Total Price:
34.22 € *
Price list
Quantity
Price per unit*
1 pcs.
34.2244 €
10 pcs.
30.8091 €
*incl. VAT plus shipping costs
**Subject to prior sale

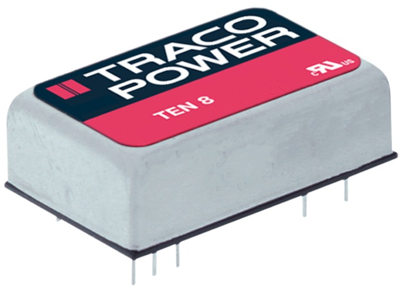

DC converters, type Traco TEN 8-.
8.0 W version in DiL 24 package; with 2 : 1 extended-range inputs and high efficiency. Features: sustained short circuit-proof, input filter to EN 55022 (class A and FCC, level A), shielded metal package with insulated base plate, industrial standard pin-out. on input voltage fluctuation: ±0.2 %. Load fluctuation: ±1.0 %. Residual ripple: 50 mVpp (20 MHz BW). Efficiency: up to 88 %. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: 1.2 million h/+25 °C. Package: metal, shielded on 6 sides and with insulated base plate.
Technical attributes (type, input voltage range, output voltage/current): TEN 8-4822, 36 - 75 VDC, 2 x OUT, ±12 VDC/±0.335 A
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±12 VDC | |
| Ausgangsstrom | 333 mA | |
| Bauform | DIP24 | |
| Breite | 20.32 mm | |
| Eingangsspannungsbereich | 36-75 VDC | |
| Höhe | 10.22 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 31.8 mm | |
| Leistung | 8 W | |
| Wirkungsgrad | 87 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
