TEP 200-2411WIRCM | TRACO POWER
DC converter, 9-36 VDC, 180 W, 1 output, 5 VDC, 90 % efficiency, TEP 200-2411WIRCM
Unit Price (€ / pc.)
436.3730 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
436.37 € *
Price list
Quantity
Price per unit*
1 pcs.
436.3730 €
10 pcs.
392.7238 €
*incl. VAT plus shipping costs
**Subject to prior sale

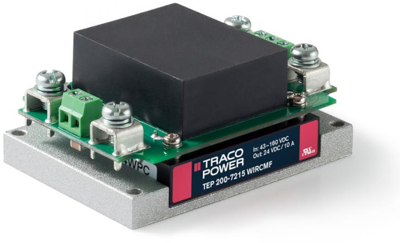

DC/DC converters, Traco TEP 200-2411WIRCM
The TEP 200WIR Series is a family of isolated high performance dc-dc converter modules with ultra-wide 4:1 input voltage ranges. They come in chassis mount version with screw terminal block and with integrated EMI input filter to meet EN 55032 class A. A very high efficiency allows full power operation at 25°C with only 100 LFM air flow couling and operation at 60°C with only 40% power derating. The very wide input voltage range and reverse input voltage protection make these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom, industry control and railway systems for on board power distribution.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 36 A | |
| Bauform | 1/2 Brick | |
| Breite | 61 mm | |
| Eingangsspannungsbereich | 9-36 VDC | |
| Höhe | 33.8 mm | |
| Isolationsspannung | 2.25 kV | |
| Länge | 85.1 mm | |
| Leistung | 180 W | |
| Wirkungsgrad | 90 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
