TEP 200-2413WIRCMF | TRACO POWER
DC converter, 9-36 VDC, 180 W, 1 output, 15 VDC, 90 % efficiency, TEP 200-2413WIRCMF
Unit Price (€ / pc.)
461.1845 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
461.18 € *
Price list
Quantity
Price per unit*
1 pcs.
461.1845 €
10 pcs.
415.0720 €
*incl. VAT plus shipping costs
**Subject to prior sale

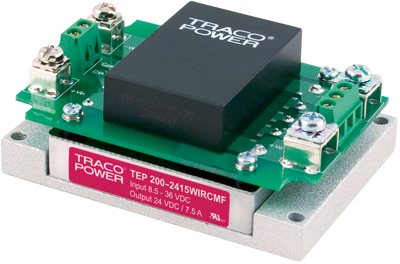

DC/DC converters, Traco TEP 200-2413WIRCMF
The TEP 200WIR Series is a family of isolated high performance dc-dc converter modules with ultra-wide 4:1 input voltage ranges. They come in chassis mount version with screw terminal block and with integrated EMI input filter to meet EN 55032 class A. A very high efficiency allows full power operation at 25°C with only 100 LFM air flow couling and operation at 60°C with only 40% power derating. The very wide input voltage range and reverse input voltage protection make these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom, industry control and railway systems for on board power distribution.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 15 VDC | |
| Ausgangsstrom | 12 A | |
| Breite | 61 mm | |
| Eingangsspannungsbereich | 9-36 VDC | |
| Höhe | 38.9 mm | |
| Isolationsspannung | 2.25 kV | |
| Länge | 85.1 mm | |
| Leistung | 180 W | |
| Wirkungsgrad | 90 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
