TES 1-0510 | TRACO POWER
DC converter, 4.5-5.5 VDC, 1 W, 1 output, 3.3 VDC, 73 % efficiency, TES 1-0510
Unit Price (€ / pc.)
6.5212 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
6.52 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5212 €
10 pcs.
5.8786 €
*incl. VAT plus shipping costs
**Subject to prior sale

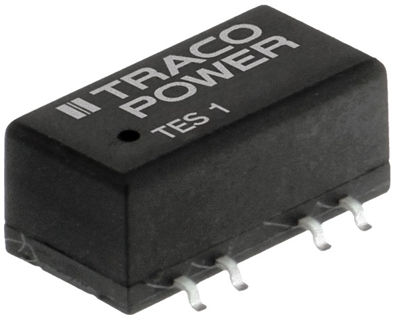

DC/DC converters, Traco TES 1-0510
With their small footprint these 1Watt DC/DC converters are an ideal and economical solution for many applications where an isolated voltage is required. Typical applications are ground loop elimination, noise reduction, voltage isolation in digital interfaces and voltage conversion in distributed power systems. With a new package design these converters are qualified for the higher temperatures requested by lead-free reflow solder processes. For automated SMD production lines the devices can be supplied in standard tape and reel package.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Ausgangsstrom | 300 mA | |
| Bauform | SMD | |
| Breite | 8 mm | |
| Eingangsspannungsbereich | 4,5-5,5 VDC | |
| Höhe | 7 mm | |
| Isolationsspannung | 1.5 kV | |
| Länge | 13.7 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 73 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
